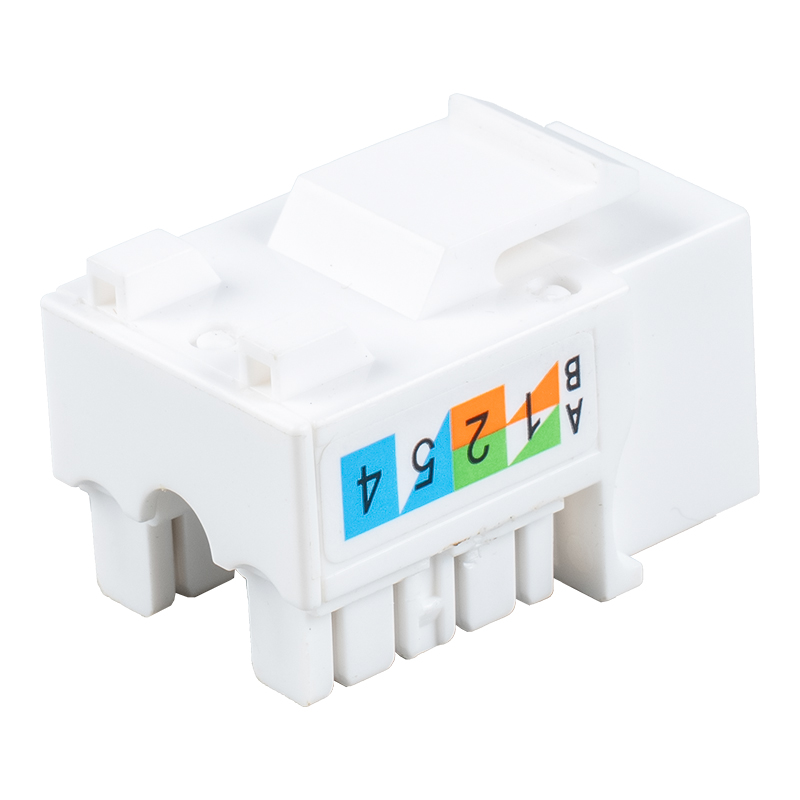

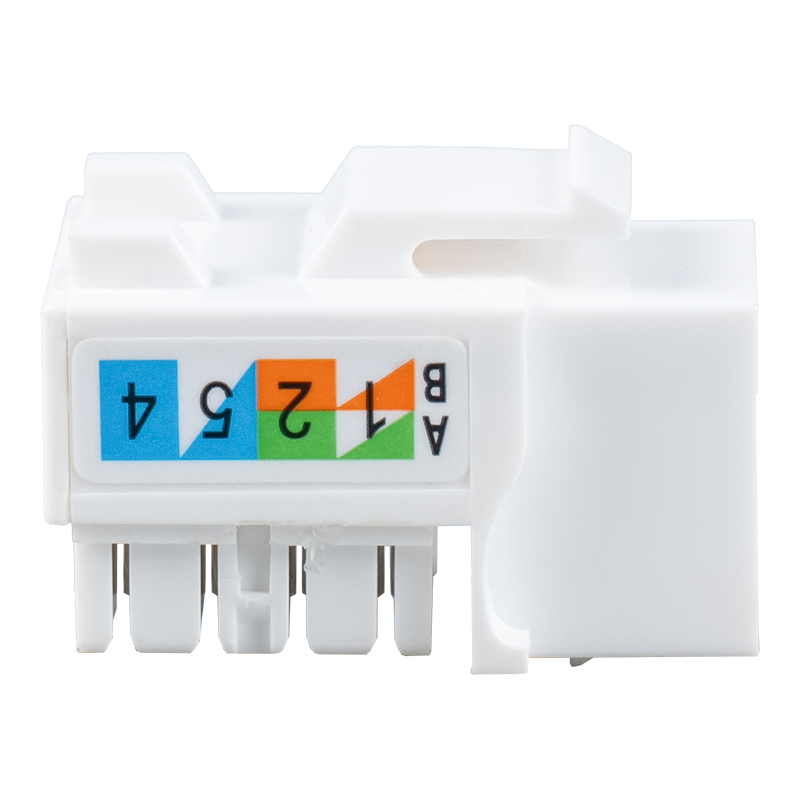

Cat5e obtentu 90° Modular Jack SM-2016H8C5E

Cat5e obtentu 90° Modular Jack (exemplum SM-2016H8C5E) est RJ45 nervus modularis designatus ad Gigabit Ethernet cabling. Retardans PC (UL94-V0) album, altum flammae-retardat habitationem, vexillum 8P8CRJ45 coniungentis feminae in antica, et octo inurae typus IDC terminales in tergo, sustinentes 22AWG, 23AWG, et 24AWG solidum vel destituti filum aeris, et compatitur cum signis utriusque T568A et T568B cabling.

commoda

1. Maximum spatium utendo: 90° angulus permittit facilem institutionem in tabulis commissuris angustis vel tabulatis, evitando conflictus spatii per 180° terminales.

2. Reliable electrical performance: Low connexion resistentia (20mΩ) et resistentia alta insulationis (≥100MΩ) ensure insigne integritatis, - Gigabit Ethernet tradendi requisita occurrens.

Coniunctio auri laminae et phosphororum aeneorum contactuum oxidationis praebet resistentiam et contactum humilem impedientem, diuturnum firmitatem meliorando.

3. Lata compatibilitas: filis solidis et contortis subsidia, 22~24 AWG specificationes, compatibilia cum signis cabling et T568A et T568B, novis vel renovationibus inceptis apta.

4. Lata applicabilitas: in variis scenis retis adhiberi potest ut tabulae series YH, pixides commissurae, et tabulata commissura, occurrentes varias necessitates inceptis, centra data, et cabling integrata structurae..

Contact Us
PREV：Cat6 obtentu 90° Keystone Jack SM-2337H8C6 DEINDE：Cat6 Obtentu 90° Modular Jack SM-2053H8C6
  • Product Details
  • FAQ

1. SM-2016H8C5E duas tabulas parvas additas cum SM-2053H8C6 comparatas habet, ut facilius per terminationem filum filum obtineat.

2. Industry vexillum modularis 'Keystone dimensionibus

3. 110 IDC termination

4. TIA/EIA 568A et 568B wiring optiones

Module materialis - Polycarbonate Support, ABS Jack (UL94V-0)

6. filum METIOR 22-24 AWG, facilis operatio

7. Cat5e Cat.6 et cat.6A de optione, clypei asini specierum clipei et obtentu.

8. Aurum patella: 3μ"~50μ" eligi potest.

Certification

CE, ISO, RoHS, UL'

Conditio

New

Materia

Plastic

Standard

T568A/T568b

Connect Resistentia

20m OHM

Nulla Resistentia

<=100M OHM @100 V DC

Durabilitas vitae

> 750 times

Connect

RJ45 Port

Contactus

8p8c

stipare

Lobortis

Onerariam Package

Lobortis

Specification

CAT6

Origin

China

COLO COLUI CULTUM

White

TORMENTUM IUNCTUS

SOLIDUM et destitutum

22AWG/23AWG/24AWG

WTTHSTAND VOLTAGE

DC1000V AC700V RMS 60HZ IMIN

PRAECLUSIO

-40/ 70°

NEGOTIUM

-10/ 60

MECHANICAL

PIGNUS MATERIA

PC UL 94-V0

IDC MATERIA

PC

Terminatio

PHOSPHORUS AES, AURUM PLATING 3U''/ 6U"/ 15"/ 30U"/ 50U"

RJ45 CONTACT VITAE

DCCL TEMPORIBUS MIN

IDCTERMINALLUFE

250 TEMPORIBUS MIN
